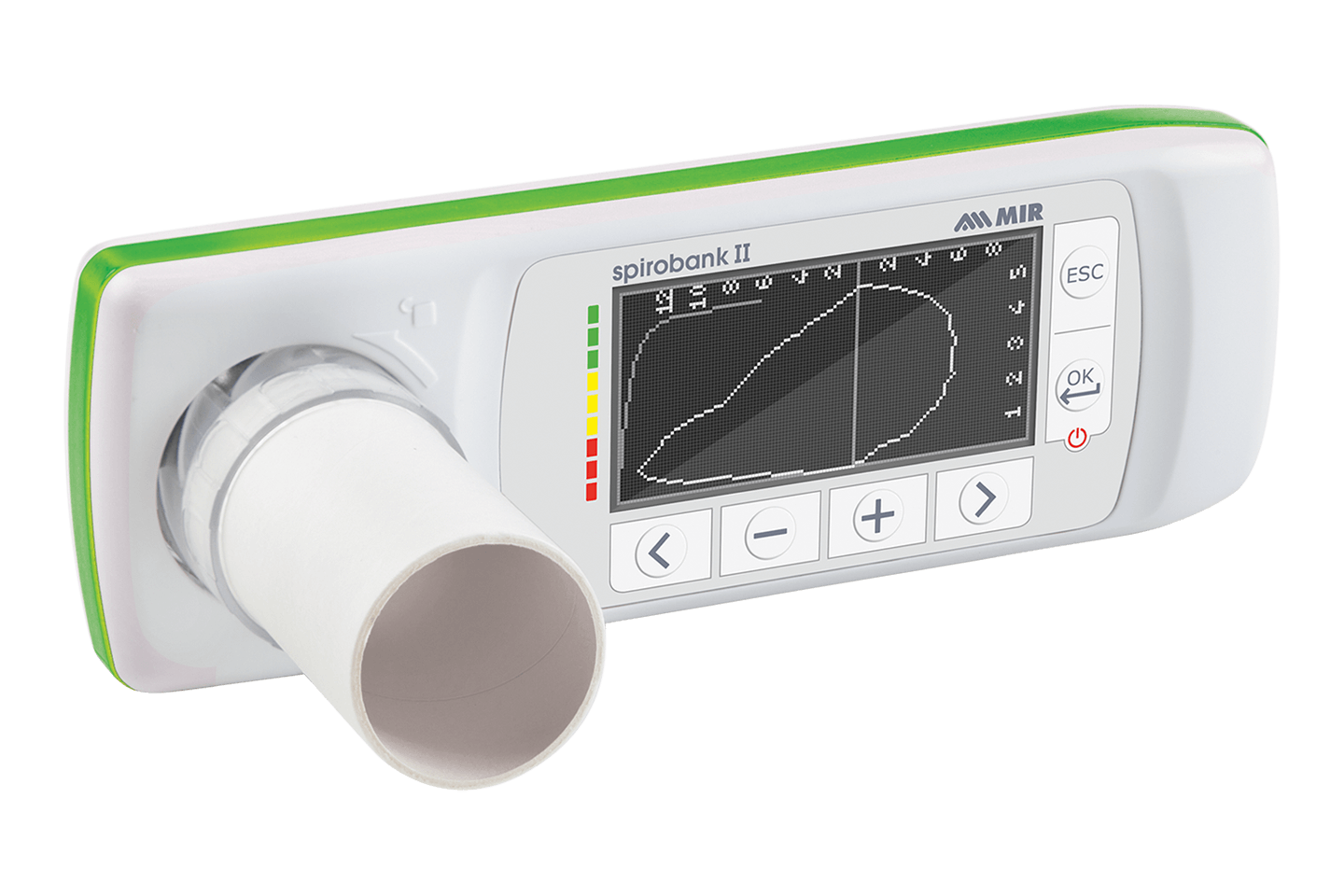

The Spirobank II® Basic is a handheld, portable diagnostic spirometer designed for use in environments where it’s only necessary to take basic measurements of the main spirometric parameters.

Its pocket size design with rechargeable long-life battery make it ideal for use in situations where remote testing is required. The user interface is fast and intuitive to operate with an icon-based navigation menu on a backlit, high resolution display. It features on-screen results and curves preview for immediate data assessment (not realtime) and a traffic light health indicator for immediate test interpretation. lt can be used as a stand-alone spirometer and also has a memory capable of storing up to 10,000 test results. It has a USB interface and is supplied with MIR WinspiroPRO® PC Software for real-time spirometry testing, and downloading of test results stored on the device. The Spirobank II® Basic measures FVC, FEV1, FEV1%, PEF, FEF25-75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV and PRE and POST Bronchodilator comparison. Predictive values are displayed after the measurement.

The Spirobank Basic is supplied with a re-usable. Re-usable turbines are used with adult one-way valve mouthpieces or bacterial/viral filters. Optional single-use disposable turbines have a pre-connected mouthpiece and are individually factory calibrated and packaged.

Features

• Easy to use handheld spirometer
• Licence-free Winspiro PRO® software included
• Paediatric incentive animations
• Estimated lung age
• Displays percentage of predicted values
• Traffic light health indicator

Supplied with

• Spirobank II Basic Spirometer
• 1 x Re-usable turbine
• 1 x Nose clip
• 1 x Winspiro PRO PC Software and USB cable
• 1 x User manual (on CD)
• Built in rechargeable battery
